22 Kv Post Insulator

22 Kv Post Insulator
22 Kv Post Insulator
Product Code : SC-PT-2202
Product Description

22 Kv Post Insulator

Holding years of experience and knowledge in this domain, our company has emerged as one of the distinguished manufacturers, suppliers and exporters of 22 Kv Post Insulator. These are manufactured as per the international safety standards by utilizing optimum quality raw materials and advance technology. Our comprehensive range of 22 Kv Post Insulator is widely acclaimed because of its high cantilever strength, high tensile strength, durability and impeccable performance. Our quality range of post insulator is available at very economical prices.

Specifications

Standard Particulars

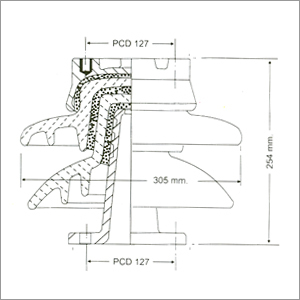

Drawing No.





SC-PT-2202

Highest System Voltage



kV

24

Working Voltage



kV

22

Creepage Distance Minimum



mm

580

Cantilever Strength

Upright

kg

1815



Underhand

kg

1360

Torsional Strength



mkg

230

Compressive Strength



kg

6820

Tensile Strength



kg

3060

Power Frequency Withstand Voltage

Wet

kV

70



Dry

kV

80

Power Frequency Flash over Voltage

Wet

kV

85



Dry

kV

95

Impulse Withstand Voltage



kVp

150

Power Frequency Puncture Voltage



kV

1.3xActual Flashover Voltage

Net Weight(approx)



kg.

18.0

Specification as per IS: 2544, and IS: 5350
